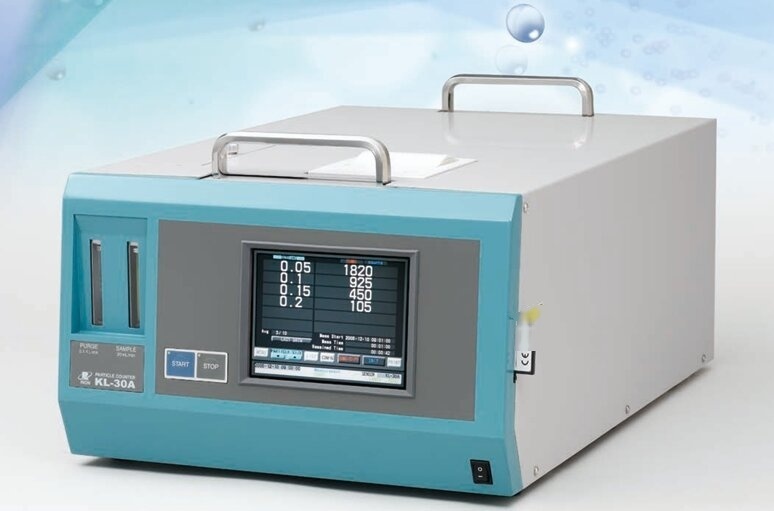

二手 RION KL-30A #293820658 待售

Liquid particle counter Optical system: Light‑scattering method Diode pumped solid state laser Wavelength: 532 nm Rated output: 500 mW Silicon photodiode light detector Size Range: 4 Channels: ≥0.05 μm, ≥0.1 μm, ≥0.15 μm, ≥0.2 μm User selectable channels: 2 to 10 channels Setting range: 0.05 μm to 2.0 μm Sampling flow rate: Flow rate 20 mL/min Purge flow rate 0.1 to 1 L/min combined Sample Inlet / Outlet: 4 × 6 (dia.) or 3.96 × 6.35 (dia.) flared joint or tube Sample Pressure Range: 100 to 500 kPa Sample Temperature Range: 15 °C to 35 °C No condensation in flow system Materials of Parts Exposed to Sample: Synthetic quartz, Fluorocarbon rubber, Fluoroplastic, PVC, Pyrex glass, SUS304/316, POM Counting Efficiency: 10 % ± 3 % Effective flow rate: 2 ± 0.6 mL/min Size resolution: 10 % or less (PSL particles in 0.15 μm range) Maximum particle number concentration: 15,000 particles/mL False count rate: Less than 0.01 particles/mL Purge Air Port: Rc 1/8 (1/8 PT female) Environmental Conditions for Operation: 15 °C to 35 °C, less than 80 % RH (no condensation) Power: 130 VA, 100 to 240 VAC, 50/60 Hz Accessories: Power cord TP‑08 Thermal paper CF Dummy card KL‑30‑S21 Purge air unit.
